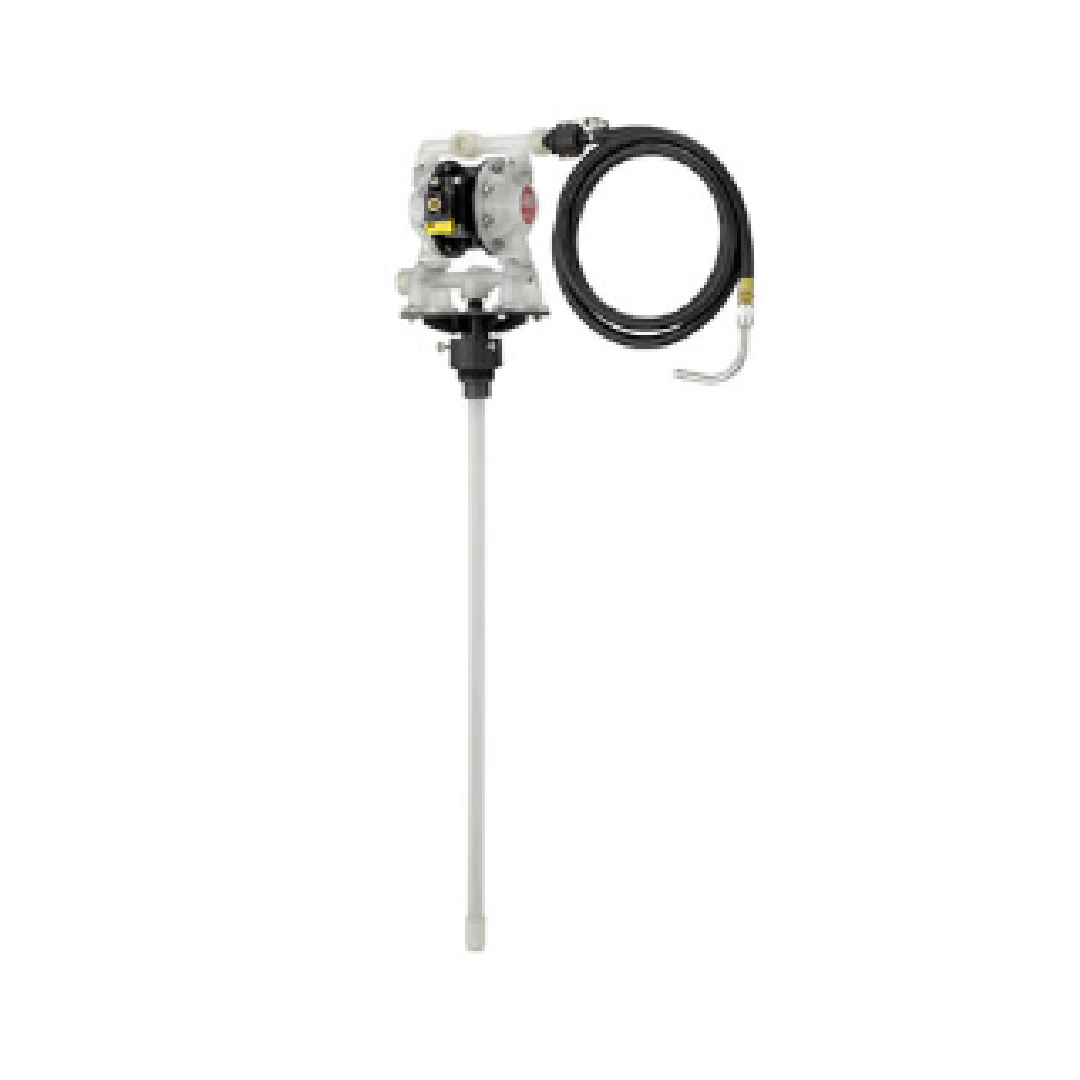

Drum Pump Packages Basic Pump, Transfer or Dispensing
Brand : ARO
Category : Transfer Pumps
Description :
Ratio: 1:1
Maximum Flow:
Non-metallic: 14.4 GPM (54.5 lpm)
Metallic: 12.0 GPM (45.4 lpm)
Displacement per cycle:
0.039 Gallons (0.15 Liters)
Air Inlet: (Female) 1/4 - 18 NPT/F
Fluid Inlet: Siphon tube for 55-gallon drum
Fluid Outlet: 1/2 - 14 NPT/F
Max. operating pressure: 100 PSI (6.9 bar)
Suspended solids max. dia.: 3/32" (2.4 mm)
Weight:
22 lbs. (10 kg) Polypropylene, basic package
26 lbs. (11.8 kg) Aluminum, basic package
36 lbs. (16.3 kg) Stainless, basic package
